HET 02120 - FLEXURAL STRENGTH TESTING MACHINE - IS:516, 9399
10

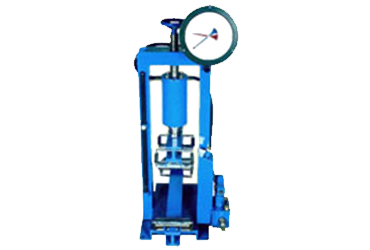

FLEXURAL STRENGTH TESTING MACHINE
IS: 516, IS: 9399, BS: 1881, and ASTM C78
The Flexure Strength Testing Machines are designed to provide maximum rigidity throughout their working range. The downward movement of Hydraulic ram applies the load. The jack can be raised or lowered for testing different size beams. The load is indicated on a calibrated Bourdon tube type load gauge of range: 0-100KN X 0.5KN (0-10,000 kgf X 50 kgf). The load gauge is calibrated against NPL/NCCBM certified proving ring.
