HET 02140 - JOLTING APPARATUS - IS 1727 1967, IS 4031 1968
JOLTING APPARATUS
For making standard rectangular specimens of 40 x 40 x 160mm. of Portland and pozzolana cement mortar for determining the transverse strength.

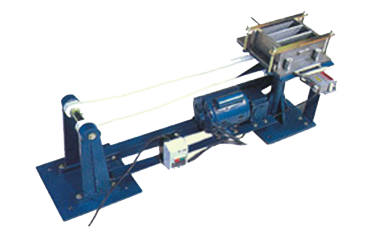

The jolting apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table. There is a projecting lug with a plane face on the upper face of the table beneath which is a stop with a rounded upper surface. The table can be raised and allowed to fall freely on the stop by a cam which is connected to a motor and gearbox through a V-belt an pulleys. The cam rotates at a rate of 60 Rev/Min. A stroke counter fitted with micro-switch is provided which stops the machine after 60 Jolts. Locating pins are provided for mounting the mould compartments on the table. The mould surmounted by the hopper can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation on 230 Volts, Single Phase, A.C. Supply. A Digital Preset Counter can be supplied at an extra cost.
