HET 02150 - CEMENT MORTAR PERMEABILITY APPARATUS-IS:1727-2645

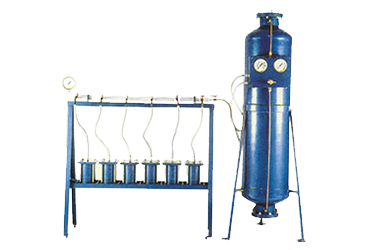

CEMENT MORTAR PERMEABILITY APPARATUS
For water proofing of concrete admixture and special water proof cements are used. Water proofing of these compounds, is established by measuring permeability of standard mortar. Specimen with or without such water proofing compounds. Permeability apparatus in used to determine permeability to water of cement mortar specimens with or without water proofing compound.
Specification :
The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-7kg/sq. cm. The regulator has two pressure gauges, one for indicating the pressure in the chamber (0-10.5kg/sq.cm.) The pressure chamber is connected to the cells with pressure hoses and with couplings. This pressure chamber is fitted with valve. Pressure is applied to the pressure chamber with help of a foot pump and rubber hose which are supplied with the instrument.
Three Cell Model mounted on a stand.- Six Cell Model mounted on a stand.
- Twelve Cell Model mounted on a stand.
Accessories : Specimen casting mould C.I. with base plate 100mm dia x 50mm height.
