HET 03100 - COMPRESSION TESTING MACHINE - HAND OPERATED - IS : 516
1. Compression Testing Machine, Hand Operated 25,000 kgf (250 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.
2. Compression Testing Machine, Hand Operated 50,000 kgf (500 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.
3. Compression Testing Machine, Hand Operated 100,000 kgf (1000 kN- Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.
4. Compression Testing Machine, Hand Operated 100,000 kgf (1000 kN- Pillar Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.
5. Compression Testing Machine, Hand Operated 200,000 kgf (2000 kN – Channel Model) double plunger pump with hydraulic pressure gauge with our own Calibration Report.

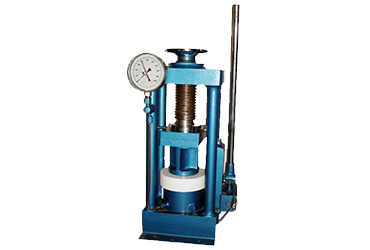

COMPRESSION TESTING MACHINE - HAND OPERATED
The concrete is a man-made material, essential mixed at site. The properties of concrete depend on the properties of its ingredients and their proportion, and it is likely to vary from mix to mix. Tests must be conducted, therefore, to ensure that the concrete used is in accordance with design specifications. It is a frequent test of compressive strength, in which concrete samples are tested to failure.
For Compression test on Concrete or Similar materials, suitable for use on Concrete cubes of any size upto 5cm x 5cm x 5cm, 7.06 x 7.06cm, 10cm x 10cm x 10cm, and 15cm x 15cm x 15cm also on 10 x 20cm and 15 x 30cm high concrete cylinders. The load is applied through hydraulic assembly.
The lower platen is on the Hydraulic Ram, and upper having a spherical seating is adjustable. The machine is provided with an air release valve and the load is automatically indicated on the 15cms dia hydraulic pressure calibrated against an N.C.B.M. tested Proving Ring and fitted with a legless max pointer in addition to the ‘live’ pointer.
Features:
High stability, - Self-aligning platen assembly,
- Gauges are calibrated in kN against certified proving rings
- Suitable for testing cubes and cylinders of various sizes
- Using special platens, bricks can also be tested
- Hardened & grinded platens with guide lines placing sample testing.
