HET 01040 - CORE CUTTER APPARATUS - IS : 2720 (PART-XXIX)
03
CORE CUTTER APPARATUS

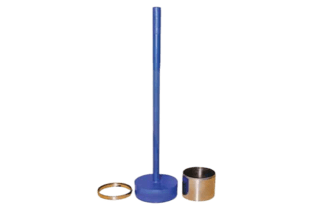

This is used for determination of in situ dry density of natural or compacted fine grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and rammer. From the weight, density and the moisture, and dry density of the soil is ready calculated. It consists one each of: cylindrical core cutter mode of steel, 127.3mm. Long and 100mm internal diameter. Steel dolly, 25mm high with a lip to enable it to be located on top of the core cutter, rammer with detachable steel rod.
