HET 01180 - SIEVES : IS : 460 - 1962
03
SIEVES

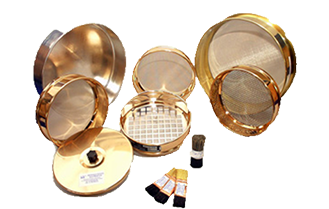

20cm Dia Brass Frame Sieves - 30cm Dia G.I. Frame Sieves
- 45cm Dia G.I. Frame Sieves
BSS Mesh No. (410/1969) |
ASTM Mesh No. (11-70) |
ISS (469/1972) |
Microns |
|---|---|---|---|
| 4 | 5 | 4.00mm | 4000 |
| 5 | 6 | 3.35mm | 3353 |
| 6 | 7 | 2.80mm | 2812 |
| 7 | 8 | 2.36mm | 2411 |
| 8 | 10 | 2.00mm | 2057 |
| 10 | 12 | 1.70mm | 1680 |
| 12 | 14 | 1.40mm | 1405 |
| 10 | 12 | 1.70mm | 1680 |
| 16 | 18 | 1.00mm | 1003 |
| 10 | 12 | 1.70mm | 1680 |
| 18 | 20 | .850mm | 850 |
| 10 | 12 | 1.70mm | 1680 |
| 22 | 25 | .710mm | 710 |
| 25 | 30 | .600mm | 600 |
| 30 | 40 | .425mm | 420 |
| 44 | 45 | .355mm | 355 |
| 52 | 50 | .300mm | 300 |
| 60 | 60 | .250mm | 250 |
| 72 | 70 | .212mm | 210 |
| 85 | 80 | .180mm | 180 |
| 100 | 100 | .150mm | 150 |
| 120 | 120 | .125mm | 120 |
| 150 | 140 | .106mm | 105 |
| 170 | 170 | .090mm | 90 |
| 200 | 200 | .075mm | 75 |
| 240 | 230 | .063mm | 63 |
| 300 | 270 | .053mm | 53 |
| 350 | 325 | .063mm | 63 |
| 400 | 400 | .037mm | 37 |
| 500 | - | 0.25mm | 35 |
