HET-S-155 : DIRECT SHEAR APPARATUS - IS : 2720 (PART-13)
DIRECT SHEAR APPARATUS

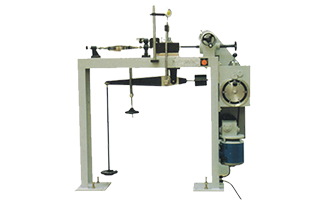

The Direct Shear test is carried out with an apparatus consisting of a square or circular box divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V-strips on which the shear box housing rests. The precalibrated load yoke with direct and lever system for applying normal load of 8 kg/cm2 capacity, fixtures, for proving ring brackets, for holding consolidation and strain dial gauges and lead screw for application of shear stress
