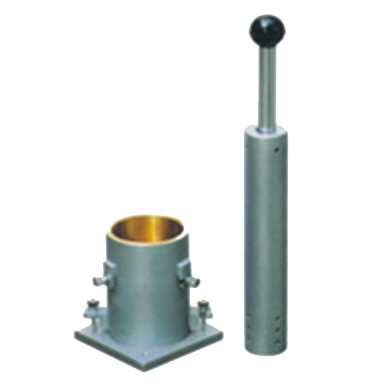

PROCTOR COMPACTION TEST APPARATUS
HET 01010 - IS : 2720 (PART-7)
Soil compaction is a fundamental requirement for the construction of earth fill for dams, reservoirs, canal embankments, highways, railways and runways. The relationship between soil moisture content and compacted dry density is very useful for deciding construction specifications and quality control of compacted earth fill. While designing an earth or earth retaining structure, the strength and deformation behaviour of soil is evaluated by testing soil specimen compacted to the density as would be achieved during construction. The construction quality control is essentially to check the density of compacted soil achieved in the field, thereby checking its strength.
Compaction Test Apparatus, Manual IS:2720 (Part 7)-1987, IS:2720 (Part 8)-1990, IS:9198- 1979, IS:10074-1982, BS:1377 Following models of Manual Compaction Test Apparatus.
- Compaction Test Apparatus 100mm ID x 127.3mm height and 1000cc volume for Light Compaction Test As per IS : 2720 Part-VII. Complete with Collar Base Plate and Rammer of 2.6 Kg x 310mm.
- Compaction Test Apparatus 150mm ID x 127.3mm height and 2250cc volume for Heavy Compaction Test As per IS : 2720 Part-VII. Complete with Collar Base Plate and Rammer of 4.89 Kg x 450mm.
